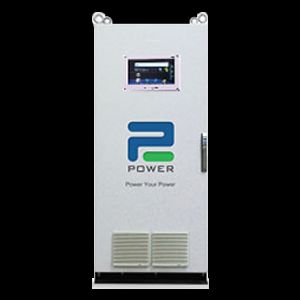

Multi-Level Active Harmonic Filter
| Business Type | Manufacturer, Exporter, Supplier |
| Download Product Brochure |  View |
Preferred Buyer From
| Location | Anywhere in India |
Features
- Fast 32 bit digital signal processor
- Multi-Level converter architecture
- Direct Connection to 575V and 690V loads
- Synchronous Rotating Frame Principal for best performance
- Ultra fast compensation
- Proven performance on welding
- Harmonic Attenuation of >98%
- High Efficiency of >98%
- Selective Harmonic compensation
- Leading/Lagging Reactive Power Compensation
- Negative Sequence Compensation (load balancing)
- 15 possible Priority Selection settings for maximum flexibility
- Smart auto foldback to avoid over loading of filter
- 7" touch screen display
- Ethernet based remote monitoring
- MODBUS RTU, USB, SD Card
- Internal CAN Communication
- Closed Loop & Open Loop operation
- Paralleling of upto 32 filters for higher capacity
- Operator Activity Log
- >2,00,000 time stamped events can be logged in internal NAND memory
Benefits
- Compliance with prescribed harmonic limits - No penalty
- Unity Power Factor - higher savings
- Reduced energy (kVAh) charges - higher savings
- Reduced peak demand charges - higher savings
- Reduced fuel consumption in generators - higher savings
- Ultra fast compensation - effective with fast fluctuating load
- Optimum capacity utilization of electrical infrastructure
- Optimum capacity utilization of backup generators
- Improved voltage profile
- Reduced risk of transformer failure - higher uptime
- Reduced risk of equipment failure - higher uptime
- Increased operational reliability - higher uptime
- Compact footprint
- Indigenous design, low maintenance and prompt service
Technical Specifications
| Models | p2p-575-apf3M | p2p-690-apf3M | ||
| Network Voltage | 575Urms +10%/-15% | 690Urms +10%/-15% | ||
| Connection | 3P/3W | |||
| Grid Frequency | 50Hz +/-5% (60Hz available on request) | |||
| Modularity | Upto 32 units | |||
| Harmonic Filtering | 2nd to 51st order | |||
| Individual Harmonic Selection | Yes | |||
| Harmonic Attenuation | >98% | |||
| Reactive Compensation | Yes | |||
| Negative Sequence Compensation | NA | Yes | ||
| Compensation | Open/Closed Loop | |||
| Reaction Time | <50 micro seconds | |||
| Filter Consumption | <2.0% of rated capacity (typical) | |||
| CT Specifications | ratio based on peak load | 0.5 class or better | 15VA or more | |
| Standards | IEEE 519-1992 harmonic standards | |||
| USER INTERFACE | ||||
| Interface | 7" touch screen | |||
| Remote Interface | Ethernet, MODBUS RTU | |||
| Configuration Settings | Through User Interface and USB key | |||
| ENVIRONMENT | ||||
| Protection Class | IP41 (Higher on request) | |||
| Operating Temperature | upto 45 degrees with adequate ventilation (upto 55 degrees with derating) | |||
| Operating Environment | Indoor, Dust Free | |||
| Relative Humidity | Maximum 95% (non condensing) | |||
| Altitude | Upto 1000m | |||
